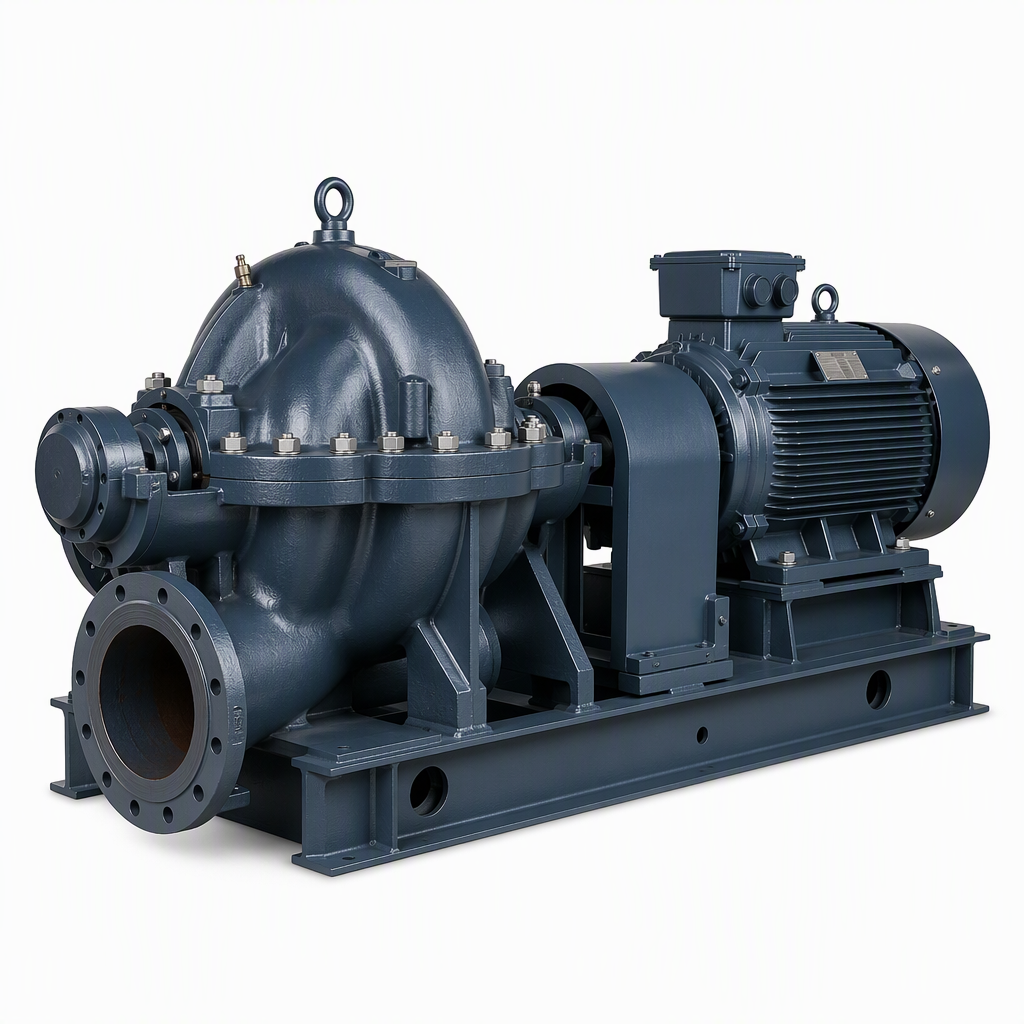

ACO Engineering Pumps Split Case Pumps are horizontal, single-stage, double-suction centrifugal pumps designed for high-volume water transfer applications. The horizontally split casing allows for easy access to the internal components without disturbing the suction and discharge piping. The double-suction impeller design balances axial thrust, providing smooth and reliable operation even at high flow rates. Built with heavy-duty cast iron or stainless steel construction, these pumps are ideal for large water supply systems, irrigation, cooling water circulation, and industrial process applications.
| Capacity | Up to 12,000 m³/h |
|---|---|
| Head | Up to 200 m |
| Power Range | 7.5 – 1,600 kW |
| Temperature | -20 °C to +120 °C |
| Suction Size | 80 mm to 800 mm |
| Discharge Size | 65 mm to 700 mm |
| Speed | 1,450 / 980 rpm (50 Hz) / 1,750 / 1,180 rpm (60 Hz) |
| Material | Cast iron, ductile iron, stainless steel, bronze |
| Applications | Water supply, irrigation, HVAC, cooling water, industrial |
